Model:WDLSZJ
A4 paper page counter
Model:WDLSZJ
Our company absorbs the Western vanguard technology positively and domestic and foreign travels together the characteristic, makes up for one’s deficiency by learning from others’ strong points and displays own characteristic, the development user-friendly product, strives for the product each target to achieve the domestic advanced standard, satisfies general customer the request.
Model:WDLSZJ
Our company absorbs the Western vanguard technology positively and domestic and foreign travels together the characteristic, makes up for one’s deficiency by learning from others’ strong points and displays own characteristic, the development user-friendly product, strives for the product each target to achieve the domestic advanced standard, satisfies general customer the request.

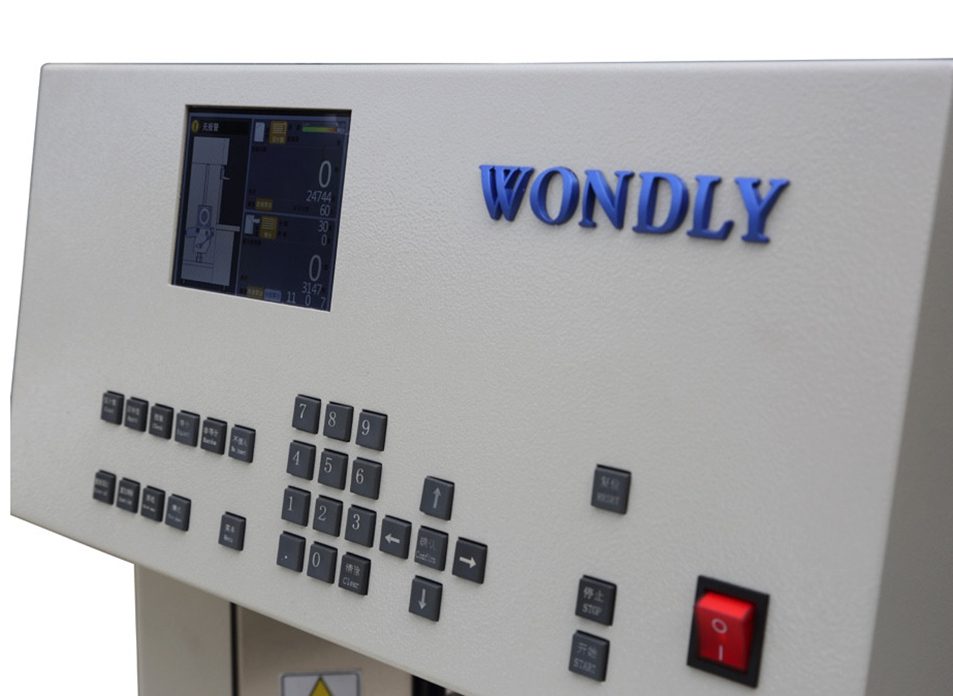

The structure of computer system and operation panel、7 inch touch + button dual function computer
Side structure of the paper sucking unit
Using Omron limit sensor
Japan Orion vacuum pump (Optional)
Front structure of the label cutting unit
Side view of the Japan Fuji motor unit
Using Japanese original NSK bearing
main parameters
| paper thickness range | 22～230kg（Carbon paper,offset printing paper, coated paper,etc.） |
| paper size | Min.100X150mm、Max 546X788mm |
| paper stacking height | 300mm（Max） |
| Power Supply/voltage | AC220±10V、50Hz |
| motor | 0.4KW |
| Collecting table width | 600X600mm |
| Collecting table width height | 760mm |
| machine size | 900（W）X1080（L）X1500（H） |
| machine weight | 230kg |
| label for paper in pile | Width 6mm、Length 100m |
| consumed power ; | 600W |
Main configuration
| America ARM Core CPU Frequency： | 400MHZ |
| SDRAM： | SAMSUNG DDR2，64MB |
| FLASH ROM： | SAMSUNG 64MB |
| Listepping moto | china |
| TFT： | Foxconn 7 Inch+ button dual function computer |
| KEYPAD： | OMRON |
| Paper Count Motor： | FUJI Servo Motor |
| Air Pump Motor： | china\korea |
| IF Sensor： | OMRON |
| Hall Sensor： | OMRON |
| Switch Power： | Taiwan Meanwell |
| Cable： | America TE |
