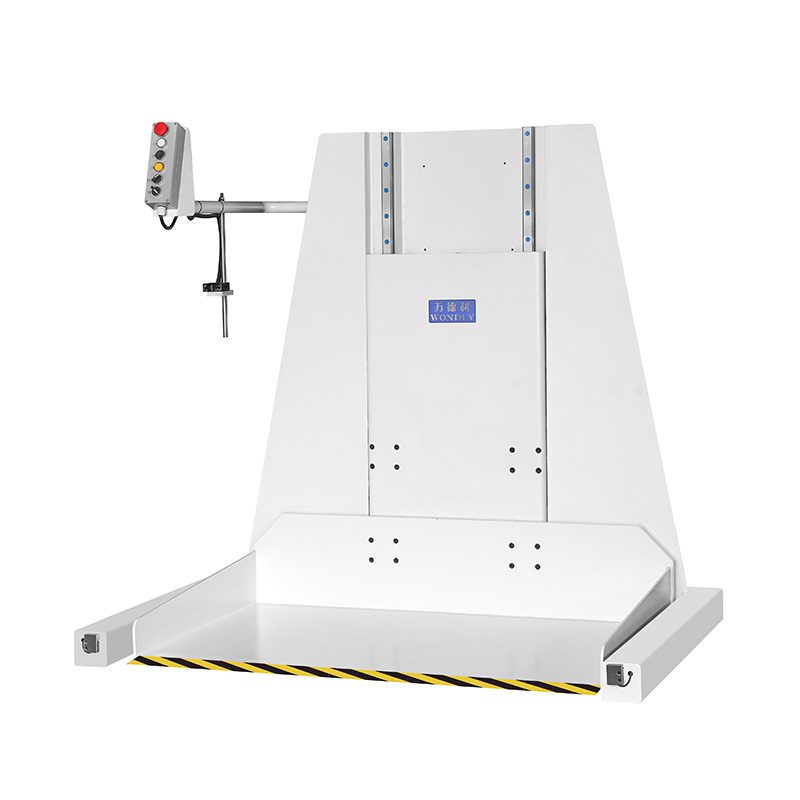

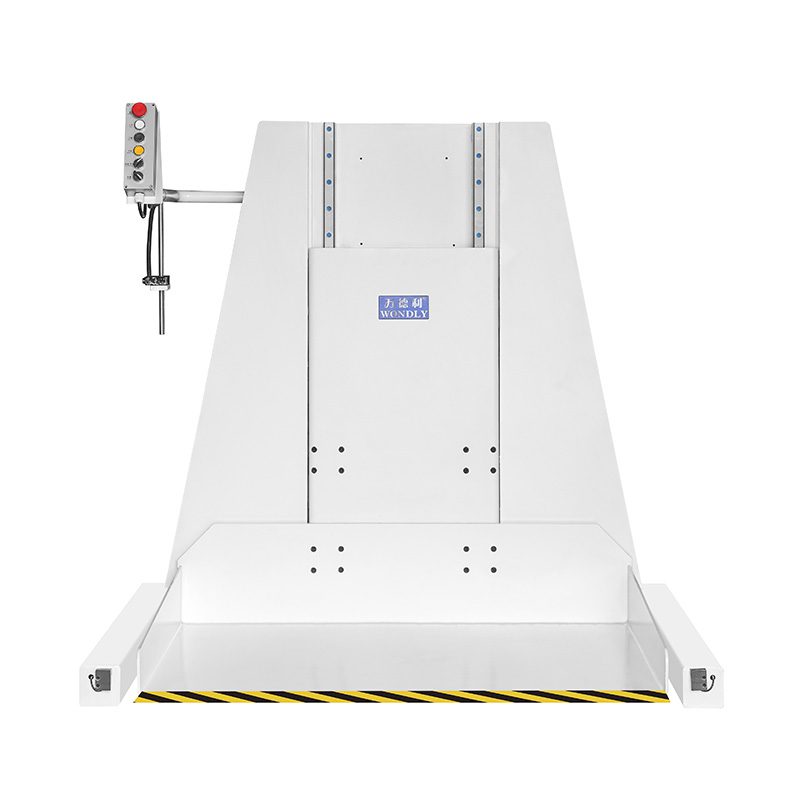

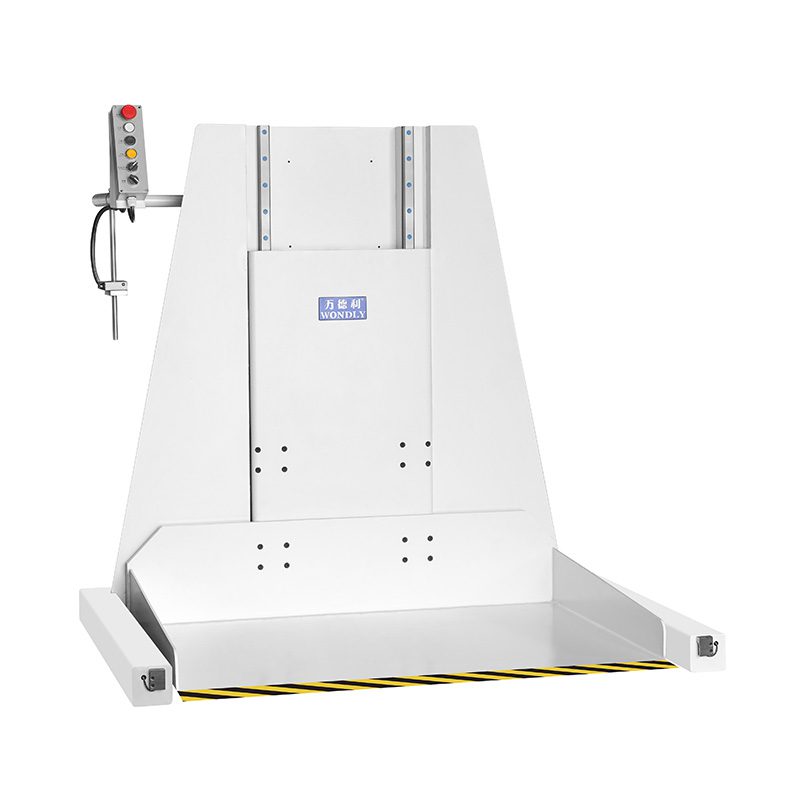

Functions and configuration of automatic Lift LT-2:
The automatic lift produced by our company has the characteristic of humanization. The operator can transfer the material to a paper cutter or a paper breaker at any comfortable height. It is also suitable for stacking finished materials, thus reducing the labor intensity of operators and improving the production efficiency.
The electric components and infrared light control of the safety system of the automatic lift produced by our company adopt the international brands of Schneider and Omron from France or Germany. The linear guide rail of the lifting system adopts Taiwan brand TBI. The vane pump of hydraulic system adopts Chinese brand Xianju Yongling. Oil circuit board adopts high hardness material. The control valve adopts advanced cartridge valve. Only high configuration can have high quality and high safety performance.
Therefore, the elevator produced by our company has the advantages of lifting balance, low noise, high safety function and strong durability.
Technical Parameters:
| Model | LT-2 Unit |
| Pallrtsize,max | 94×132 cm |
| Stoke up to | 85 cm |
| Carring capatit.Max | 1000 KG |
| Power consumption | 2.25 KW |
| Voltage | |
| Space recuired(wirh pallet) | 165×150 cm |
| Net weight | 550 KG |
| Platform(insindedime nsion) | 105×140 cm |
| Height | 150 cm |
Component configuration：
 |
Use Schneider electrical appliances |
 |
Infrared safety protection hydraulic system |
 |
Use Schneider travel switch |
 |
Use imported linear guide rails |
