1.With automatic paper pick-up and machine function, the paper can be quickly transferred to the paper cutter working platform.
2.Greatly reduce the labor output of operators and improve production efficiency
3.Equipped with high-end laser positioning detection device to accurately detect paper position
4.Equipped witha servo motor and PLC
5.Equipped with 10.4 man-machine interface
| Manufacturer | WONDLY |
| Model | GW-2 |
| Maximum paper height | 165mm |
| Minimum paper height | 50mm |
| Maximum carrying capacity | 200kg |
| Safety height of loading platform | 1450mm |
| Maximum height of the platform from the ground | 1300mm |
| Loading cycle (seconds/time) | 25-35 |
| The total power | 2.5kw |
| Machine dimensions (L* W * H) | 3500*1900*2000 |
| Packing box dimensions (L* W * H) | 3000*1900*2200 |
| Gross weight machine | 1.5T |
| Linear guide brand | ABBA |
| Ball screw brand | ABBA |
| PLC | XINJIE |

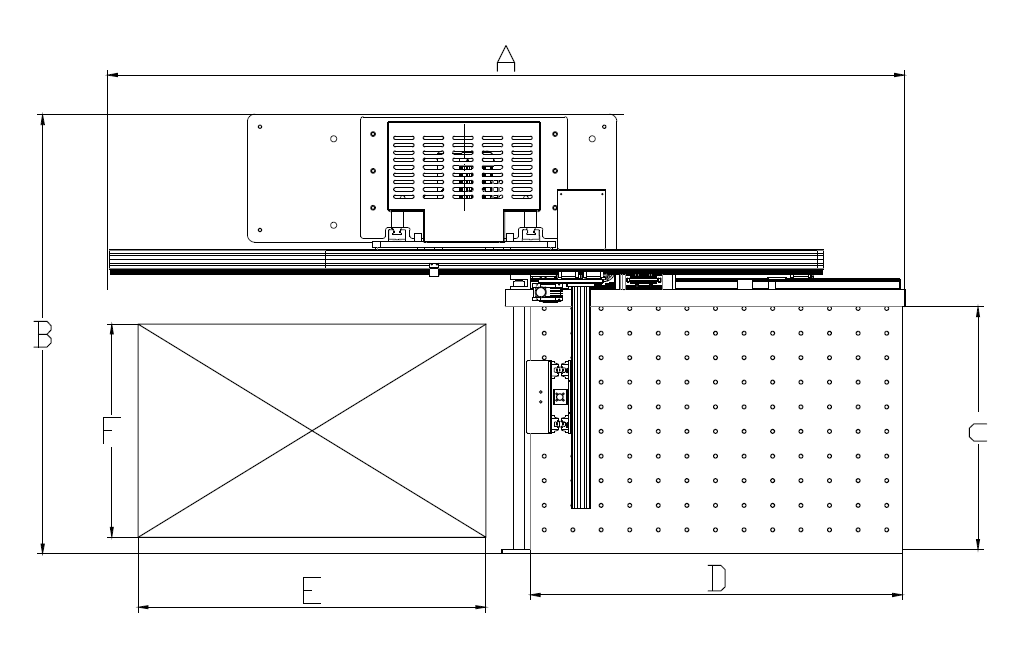

| Model | GW–2 | |
| Total length of paper taking machine (A) | 3500 | mm |
| Including guardrail (A+) | 3800 | mm |
| Total width of paper machine (B) | 1900 | mm |
| Total height of paper machine (H) | 2000 | mm |
| Platform Length (D) | 1600 | mm |
| Platform width (C) | 960 | mm |
| Take paper width (F) | 950 | mm |
| Paper length (E) | 1350 | mm |
| The compressed air | 5–8 | bar |
| The power supply voltage | 3PH，360V-420V，50/60HZ | |
